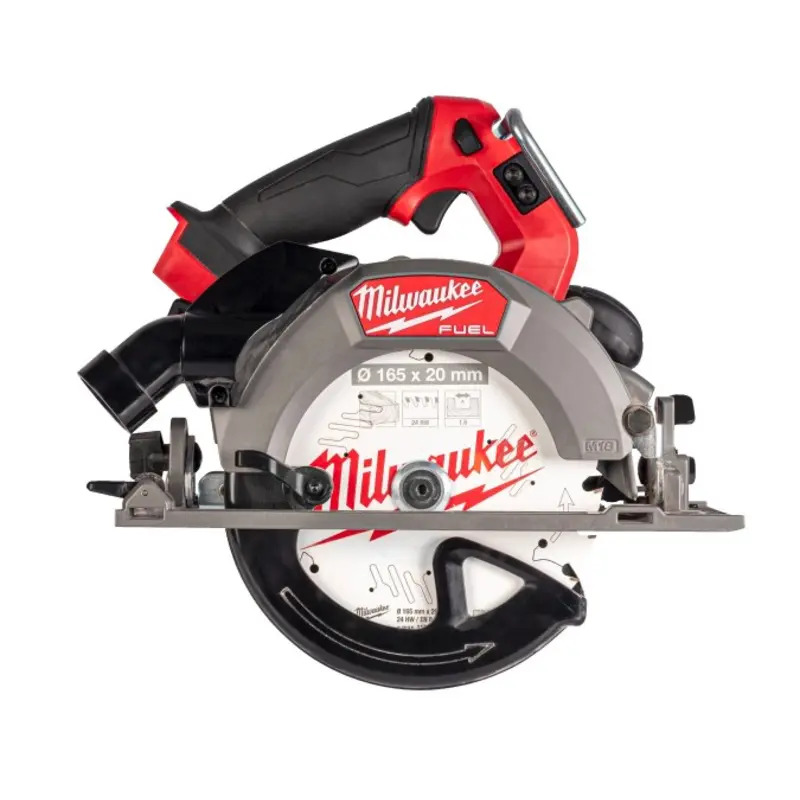

The MILWAUKEE® M18 FUEL deep cut circular saw has been designed to deliver maximum cut capacity with its step down gearing system which provides a 66 mm depth of cut with a 165 mm blade diameter

Delivers the power to rip cut at the same feed rate of an equivalent AC circular saw, with the ability to cut 400 pieces of 90 mm x 35 mm pine stud on one 5.5 Ah HIGH OUTPUT™ battery

Bevel capacity from 0° up to 45°with an option to go to -5° to cover a wider range of applications

Metric depth scale positioned to provide ease of use when setting the depth with a maximum cutting depth of 66 mm when cutting off the guiderail at 0° and when cutting on the guiderail at 0° the cutting depth is 61mm

Kitted with our DEK26 vacuum adaptor which has a pivoting action to direct the hose away from the cutting edge to avoid it getting caught on the material and it will fit directly to all MILWAUKEE® dust extractors

Integrated dust blower keeps cut line and dust build up in front of the saw clear for best cut line visibility

Integrated LED light for workspace illumination

Magnesium shoe reduces weight and maximises durability

The HIGH OUTPUT™ system of tools elevates the M18 FUEL technologies to a new level and delivers extended performance and extended run time. These tools are designed to maximise the partnership with HIGH OUTPUT™ and FORGE™ batteries

Flexible battery system: works with all MILWAUKEE M18 batteries

Bevel capacity (°): -5° to 45°

Blade diameter (mm): 165

Bore size (mm): 20

Cutting depth (mm): 66

Guiderail compatible: Yes

Max. cutting depth 45° (mm): 46

Max. cutting depth 90° (mm): 66

Max. cutting depth with guiderail [mm]: 61

Max. cutting depth with guiderail 45° [mm]: 41

No load speed (rpm): 6,000

Standard equipment: Side fence, blade CSB P W 165 x 20 x 1.6 x 24 ATB (4932471931)
