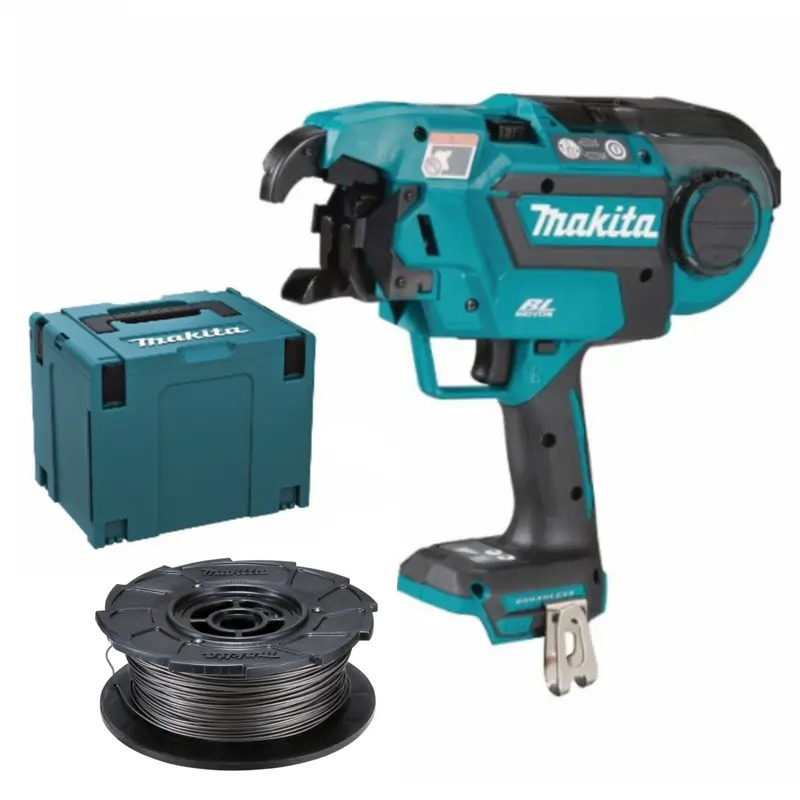

DTR180ZJ 18v LXT Brushless Rebar Tying Tool

The Makita 14.4V/18V DTR180ZK specifically designed for the construction industry. For tying up to 4 x D13 rebar at the same time. The ergonomic design with central weight distribution and ergonomically shaped handle ensure work can be carried out for longer periods of time. The brushless motor delivers a runtime of up to 5000 ties with a 5.0Ah battery. Single action mode for a tie with every trigger press or hold the trigger in continuous mode for rapid tying. In 3 simple steps you can load a wire reel with approximately 120 ties. Depending on the condition of the material the tying strength can be adjusted in 6 stages. Supplied as a bare unit. Wire, batteries and charger available separately.

Features and Benefits:

Brushless motor

On-tool storage of Hex wrench

Ergonomically designed handle with soft grip

Tying rebars can be done automatically for a range of applications such as building concrete foundations

Operable by only one hand, allowing the other hand to be free to adjust the position of the rebar

2x operating modes: Single or continuous action

Continuous actuation mode for efficient continuous tying: User can tie rebars by only pulling contact arm against rebars if they continuously hold the trigger

Tie wire reel can be replaced simply by opening reel cover

Adjustable Rebar tying strength: According to the condition of tying material, tying strength can be adjusted in 6 stages

In MAKPAC 4 Case
Technical Specification:

Corded/ Cordless - Cordless
Voltage: 14.4 / 18V
Max Power Output: 340W
Tie Wire:Ø0.8mm Annealed wire
Applicable Rebars: D10 x D10 - (D13x2) x (D13x2)
Approx ties per reel: 120 (with 5.0ah battery)Net Weight: 2.3 – 2.6kg
Vibration: 2.5 m/s²:Vibration K Factor: 1.5 m/s²
Sound Pressure
78dB(A)
Sound K Factor:3 dB(A)

199137-9 Tie Wire Set

Each reel contains 100m of wire suitable for the DTR180 Supplied in boxes of 50 reels.

Suitable for use with the DTR180 18V LXT Brushless Rebar Tying Tool

21 gauge diameter wire for maximum strength

Up to 120 ties per wire reel for maximum productivity
